Varian RapidArc®
Description
The purpose of the Varian RapidArc® MLC QA Tests is to provide six automated routines to support commissioning and ongoing QA on Varian LINACs equipped with either a Millennium 120MLC or a Millennium HD120 MLC and RapidArc®.
Test 0.1 – dMLC dosimetry
Test 0.2 – Picket Fence versus Gantry angle
Test 1.1 – Picket Fence test during RapidArc®
Test 1.2 – Picket Fence test during RapidArc® with intentional
errors
Test 2 – Dose Rate and Gantry Speed during the delivery of
RapidArc®
Test 3 – Leaf speed during RapidArc® delivery
RapidArc® is registered trademark of Varian Medical Systems, Inc.
Varian RapidArc® test 0.2 EPID image

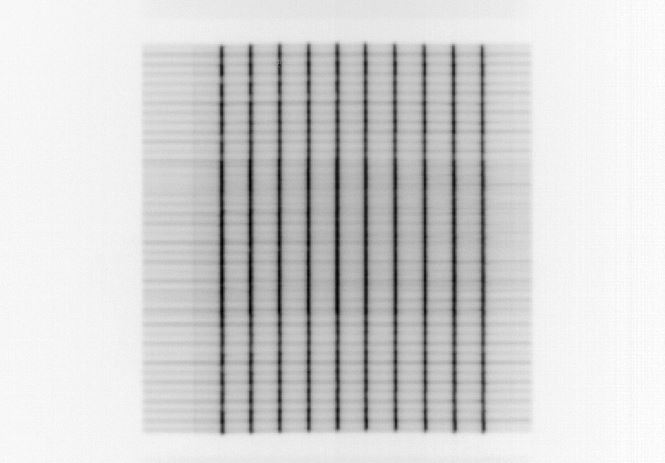

Varian RapidArc® test 1.1 EPID image
Varian RapidArc® test 1.2 EPID image
Varian RapidArc® test 2.0 EPID image
Varian RapidArc® test 3.0 EPID image
Requirements
| Software products |
|---|
| RIT 113 Classic |
| RITG142 |
| RIT Complete |
| Hardware |
|---|
| Varian dynamic MLC |
| Varian aS 500/1000 EPID |
Additional information
Reference TG142
Example Report: Test 0.1
Example Report: Test 0.2
Example Report: Test 1.1
Example Report: Test 1.2
